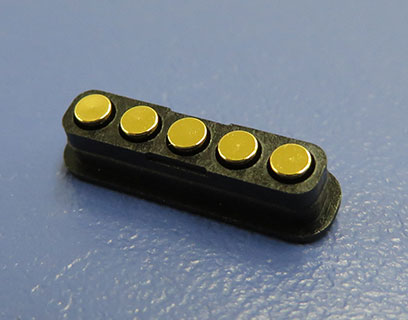

S Series
Waterproof Receptacle Connector
Feature
- Capable of IPx7 Rating
- SMT Available
- 2.5mm Pitch Compact Size

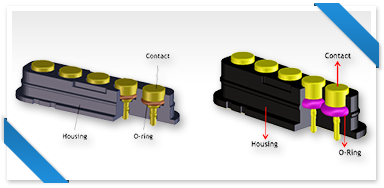

Core Technology
- Connector becomes waterproof (IPx7)
- TBy O-ring between Contact Pin and Housing.

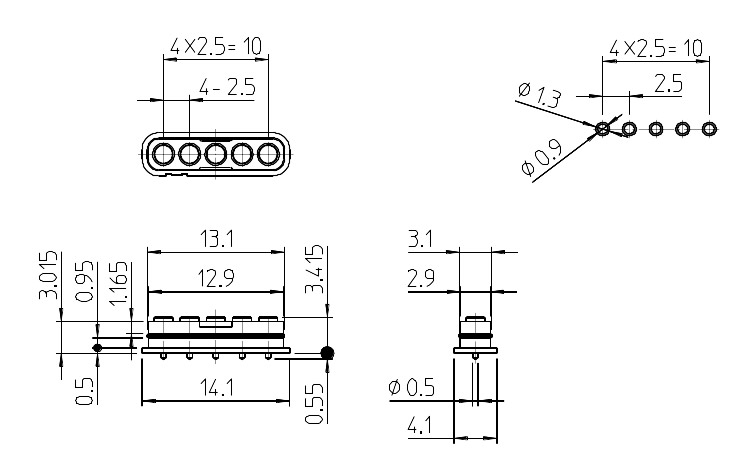

Basic Dimensions
Unit: mm
| Type | Rated Current | Contact Resistance | Part Number |
|---|---|---|---|
| SMT (PIP) | 2A | 50mΩ | S-J-2200X-5-25-0000 |
| Thru-hole | 2A | 50mΩ | S-J-2200XL-5-25-0000 |
[For Your Customized Requirement...]

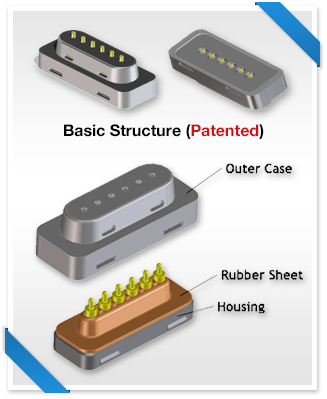

Waterproof Male (Pogo) Connector
- This unique structure is patented by Yokowo.
- Capable of IPx7. Along with your requirement,
- we can fully customize. Please contact us for detail.
Waterproof Receptacle Connector
- Please contact Yokowo to change pin numbers, pitch,
- size or any other modifications that you may require.
